PADS 2005 最新版,2005.2月底最新發布![推薦!]

( 全名Mentor Graphics PADS PCB 2005 Build 7.1)

由印制電路板(PCB)設計工具的領導者，美國PADS Software Inc．公司開發的PADS EDA系統包括PowerLogic、PowerPCB、CAM350和HyperLynx四個部分.

新年伊始，Mentor Graphics推出了嶄新的電路設計解決方案PADS 2005。這一次由2004升級到2005有一些改進和提高，軟件的名稱也有做了一些調整。
原理圖：由原來2004的PowerLogic改為PADS logic(原PowerLogic)
PCB：由原來2004的PowerPCB改為PADS Layout(原PowerPCB)
布線器：由原來2004的BlazeRouter改為PADS Router
仿真器沒有變名稱，還是HyperLynx.
PowerLogic 7.1和PowerPCB 7.1是Mentor Graphics公司推出的優秀EDA設計軟件，目前已成為眾多EDA設計軟件中的佼佼者，深受用戶的喜愛。

(由于對該軟件以及最新版本的簡介不是很熟悉,希望網友有更好的說明與糾正,可到留言本留言)

PADS2005 Release Highlights

HyperLynx 7.2 - Overview

HyperLynx?7.2 includes features and functionality to address new
challenges facing high-speed system designers. This is an
incremental release for HyperLynx users.

This release includes the following:

?Integrated Eldo simulation
?S-parameter model support
?Usability enhancements and quality improvements for existing Hyper
7.1 users with maintenance.

Enhancements for HyperLynx EXT

Usability

PCB translators - The Cadence Allegro translator can now translate
the native Allegro design file (.BRD) to the .HYP file format. The
following translators have improved quality: Mentor Graphics
BoardStation, Visula, and Specctra DSN.

Copy stackup to clipboard - The two-dimensional output version of
the copy stackup to clipboard now provides comprehensive properties
labeling and is in Windows MetaFile format.



Enhancements for HyperLynx GHz

SPICE

Eldo SPICE simulation - If Eldo is on the computer, you can now
launch Eldo SPICE simulation from the oscilloscope.

S-parameter model support - You can now simulate connectors and
packages using Touchstone models in SPICE simulations. Touchstone
models can provide the following information: S-parameters
(scattering), Y-parameters (admittance), Z-parameters (impedance),
and so on.

SPICE parameter passing - When assigning SPICE models, you can now
specify parameters to pass to the simulator.

SPICE stimulus voltage control - When assigning SPICE output models,
you can now specify stimulus switching times and stimulus logic-one
and logic-zero voltages.

Copy SPICE and Touchstone model assignments - When copying and
pasting SPICE or Touchstone models in the Assign Models dialog box,
the paste operation now preserves all port-mapping information,
except for ports connected to other pins in the schematic or board
circuit.

Change SPICE netlist base name - You can now change the base name
for the SPICE netlist and related files. This capability enables you
to save multiple SPICE netlists and simulation files for the design.

Usability

Loss versus frequency graphing in stackup editor - You can now use
the stackup editor to graph loss versus frequency data for a stackup
layer.

Copy lossy graphs to clipboard - The default copy to clipboard graph
now has a white background, to save toner or ink when printing. The
right-click copy to clipboard menu names are now more intuitive.

Tip: For a complete list of HyperLynx 7.2 enhancement and quality
improvements, see the BSW.VER and LSW.VER files located in the
HyperLynx installation folder.



PADS Logic

Defect fixes - Several defects have been corrected in PADS Logic.
See customer_fixes.txt at the root of the CD for a complete list of
what was fixed in this release.

One button Print ?Print more like standard Windows programs. Use
the button on the standard toolbar, or the Print command from the
File menu.

Windows-like Cut, Copy, and Paste -You can now use Ctrl + X, C, and
V, or pop-up menu controls to cut, copy, and paste.

Floating connections - You can organize your design the way you want
with floating connections. A floating connection is an unterminated
wire with, or without, a net name. You can also delete a part and
re-insert a new one more easily. You can choose whether to allow
floating connections.

Automatic connections ?You can connect parts to parts and parts to
nets automatically to accelerate your capture process. Just touch
the pins and/or nets together and they are connected.

Custom title blocks and borders - Your drawings can easily follow
your standards with custom title blocks and borders.

Active fields - You can have text data automatically updated and
propagated to multiple places with active fields. This capability is
especially useful in your title blocks. There are system-defined
fields, like sheet name and number, or you can define your own
fields, like company name or checked="checked"by.

TrueType?Font support - Provide more readable schematics ?on the
screen and when printed. True Type Font capabilities also add the
ability to use international characters as supported by Microsoft
Windows.

Selection toolbar - Like PADS Router (formerly known as
BlazeRouter), the Selection toolbar provides rapid change between
selection modes.

Licensing - You can now have floating seats and better control your
installation with new Mentor Graphics licensing.

Pin name character increase - You can now have up to 40 characters
in a pin name. The pin name limit has also been extended in PADS
Layout.

For the PADS2005 release, there are also two options for PADS Logic:

PADS Logic PDF - Create intelligent PDFs of your schematics for free
sharing with anyone with a PDF reader. All of the part attribute
information and net traceability are available in the PDF document.
(Optional product)

PADS SPICEnet - You can easily add simulation to your design flow
with the new netlisting from PADS Logic to standard SPICE programs.
(Optional product)


PADS Layout

Defect fixes ?About 60 defects have been corrected in PADS Layout
and Router. See customer_fixes.txt at the root of the CD for a
complete list of what was fixed in this release.

TrueType?Font support - You can print and photo plot all design
representations, including Gerber outputs. True Type Font
capabilities also add the ability to use international characters as
supported by Microsoft Windows.

Ease of use enhancements:

稭any additional dialog boxes are now re-sizeable
稩ncrease in the number of characters for pin names to 40

Improved copper pour - To accurately handle overlapping flood areas
and board outlines, there have been many copper pour improvements. A
new Copper to Board clearance has also been added to the design
rules hierarchy.


PADS AutoRouter and PADS Router

Defect fixes ?About 60 defects have been corrected in PADS Layout
and Router. See customer_fixes.txt at the root of the CD for a
complete list of what was fixed in this release.

Drill clearances ?The way PADS Router handles drill clearances has
been improved to account for drill clearances in all cases, avoiding
the creation of routing violations.

Trace length calculations ?Calculations have been improved to take
into account overlapping traces, now providing accurate trace length
measurements.

Differential pairs with component rules - PADS Router now has
improved handling of escape paths for routing of differential pairs
with component rules. This provides PADS AutoRouter more options,
resulting in better performance and more efficient routes.

Translators

Several defects have been corrects in the Translators. See
customer_fixes.txt at the root of the CD for a complete list of what
was fixed in this release.

老兄，有沒有PADS2005 SP1啊？

我有！

給個連接好嗎？laizenan@163.com

可是太大了沒辦法傳啊。

你在那里下載的可以告訴我啊，不用上傳，我自己去下就行了，謝謝！

下面地址：
http://www.taishen.org/softdown/list.asp?id=3325

這個是簡化版吧，怎么這么小呢？

好像說完整版有360多M啊。

300多兆的不是SP1版，而且它里面不全是PADS2005，它里面還有CAM350....等很多軟件所以才這么大.因此這個版本是沒問題的。

謝謝e13009 ，我下載了試了一下好像可以用。

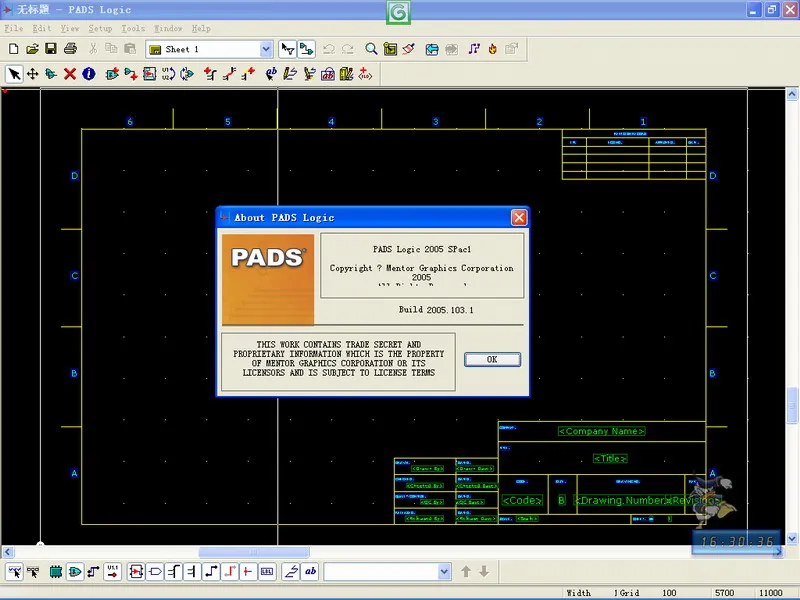

我裝好了，但好像比PADS2005少了功能，從protel轉入PADS的功能就沒了。500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/31/1122682475.jpg');}" onmousewheel="return imgzoom(this);">

是去掉了protel轉入PADS的功能，但它也新增了一些功能和修復了一些問題。至于protel轉入PADS的功能你可以從PADS2005第一版中提取出來，或是從別人電腦內COPY過來就好了。
