請大嚇指教

不用

能說說是為什么嗎?

溫升和效率不會象大功率的那么敏感

需要采用什么繞法,不是簡單的跟輸出電壓,輸出功率有關的,他跟你的變壓器的要求有關系,三明知繞法能減小你的變壓器的漏感,進一步就是能降低你的EMI及噪聲,如果你的電源對于這些都沒有要求的話,你可以不采用,如果對這些有要求,那你就的考慮考慮,否則你會需要一些額外的電路來消除變壓器的漏感等產生的影響.

謝謝你

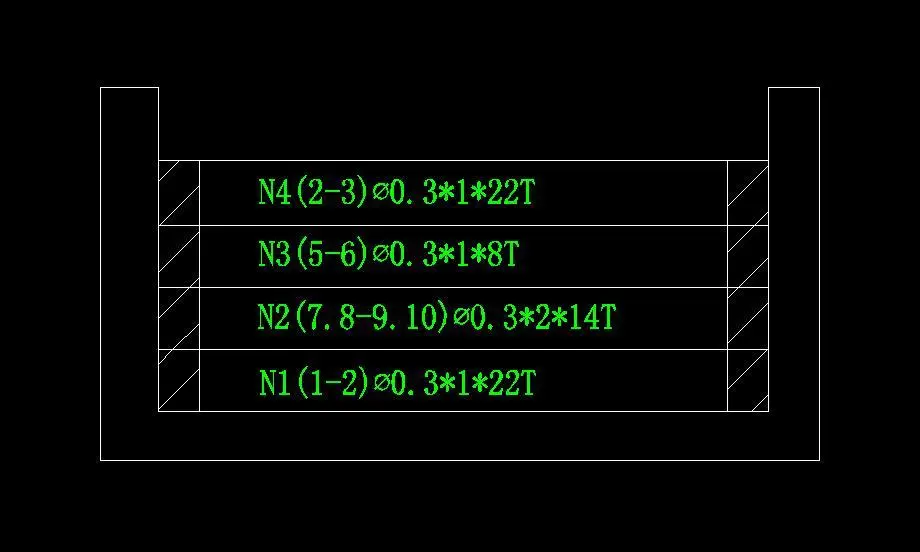

這種方法可以嗎?如圖
500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/72/981091230598306.jpg');}" onmousewheel="return imgzoom(this);">

我忘記在哪里看到的了,去磁繞組要求跟主繞組耦合越緊越好,你這個偶合的最差吧

Electrical Characteristics
(TA = +25oC unless otherwise stated, VCC=15.0V)
PARAMETER CONDITIONS MIN TYP MAX UNITS
Supply Voltage (Vcc Pin)
Startup Current 8 20 μA
VCOMP=0V 2.0 3.0 mA
VCOMP=3V 2.5 mA
Operating Current
(with 1nF load on OUT pin)
Protection tripped (OLP, OVP) 0.5 mA
UVLO (off) 9.0 10.0 11.0 V
UVLO (on) 15.0 16.0 17.0 V
LD7530 26.8 28.0 29.2 V
OVP Level
LD7530A 19.8 21.0 22.2 V
Voltage Feedback (Comp Pin)
Short Circuit Current VCOMP=0V 1.5 2.2 mA
Open Loop Voltage COMP pin open 6.0 V
Green Mode Threshold VCOMP 2.35 V
Current Sensing (CS Pin)
Maximum Input Voltage, Vcs(off) 0.80 0.85 0.90 V
Leading Edge Blanking Time 200 nS
Input impedance 1 MΩ
Delay to Output 100 nS
Oscillator for Switching Frequency
Frequency 60 65 70 KHz
Green Mode Frequency 20 KHz
Trembling Frequency ± 3.5 KHz
Temp. Stability (-40°C ~105°C) 3 %
Voltage Stability (VCC=11V-25V) 1 %
Low Frequency Timer (CT Pin)
Low Frequency Period 4.7 mS
Gate Drive Output (OUT Pin)
Output Low Level VCC=15V, Io=20mA 1 V
Output High Level VCC=15V, Io=20mA 8 V
Rising Time Load Capacitance=1000pF 50 200 nS
Falling Time Load Capacitance=1000pF 30 100 nS
OLP (Over Load Protection)
OLP Trip Level Vcomp(OLP) 5.0 V
OLP Delay Time(note) CT=0.047μF 50 mS
The OLP delay time is proportional to capacitance of CT pin.500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/72/981091230624205.jpg');}" onmousewheel="return imgzoom(this);">

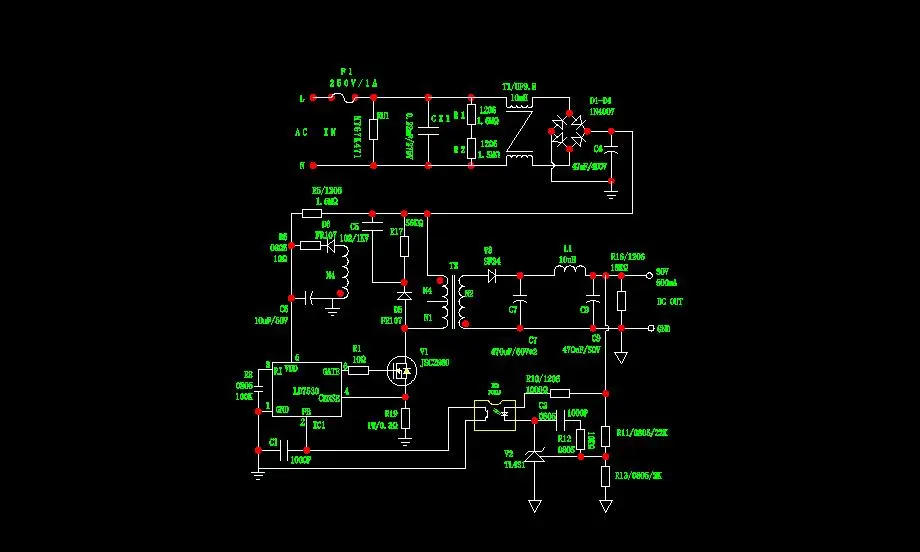

芯片是用通嘉的LD7530,輸入:200VAC-260VAC
                    輸出:DC30V500mA
待機功耗是0.53W,不知道怎么樣可以降下來,
請DX指點指點.

500) {this.resized=true; this.width=500; this.alt='這是一張縮略圖，點擊可放大。\n按住CTRL，滾動鼠標滾輪可自由縮放';this.style.cursor='hand'}" onclick="if(!this.resized) {return true;} else {window.open('http://u.dianyuan.com/bbs/u/72/981091230624902.gif');}" onmousewheel="return imgzoom(this);">

這樣做可以嗎?

怎么沒有人回答呀
