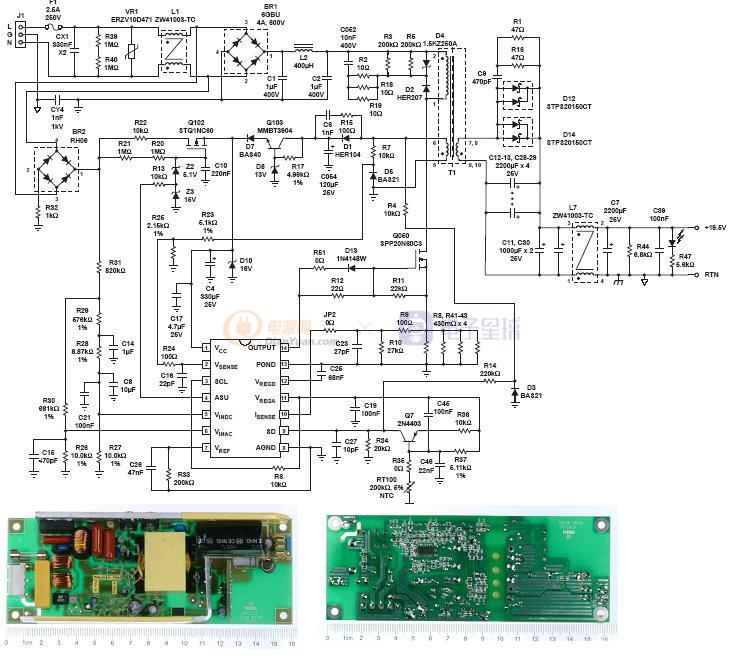

Specification :
Input : 90-265Vac
Output : 38V / 2.5A (max. 100W)
Meet IEC1000-3-2 and THD.
Meet both Class-B Conducted and Radiated EMI
Design to meet UL1950
CV with CC limit (20mA - 2.5A, Pulse charging mode selectable)
Feature :
Easy single stage converter design
Compact size (160x60x20 mm)
Production ready model
Low Cost & Low part counts
High MTBF with NO Bulk-cap, NTC, Opto-couple, Relay, etc,.)
Full Protection features (OCP, OVP, OTP, SCP)
Effiency >90%.
